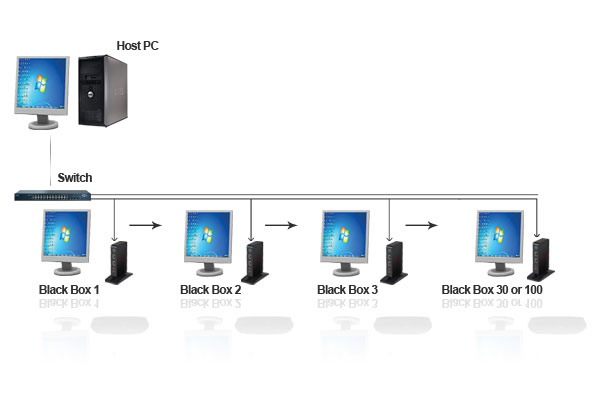

Blackbox Zero Client V1 is a HDMI supported, low-cost zero client. With a proprietary encoding technology, Zero Client V1 and its relevant software can extend a standard PC to a server-based computing system which allows up to 100 users work independently and simultaneously, while providing full experiences of a standard PC, like watching movie, surfing, mailing, editing Word or Excel, voice chatting, ect. Under commercial environment, it is a revolutionary alternative for the traditional PC or thin client.

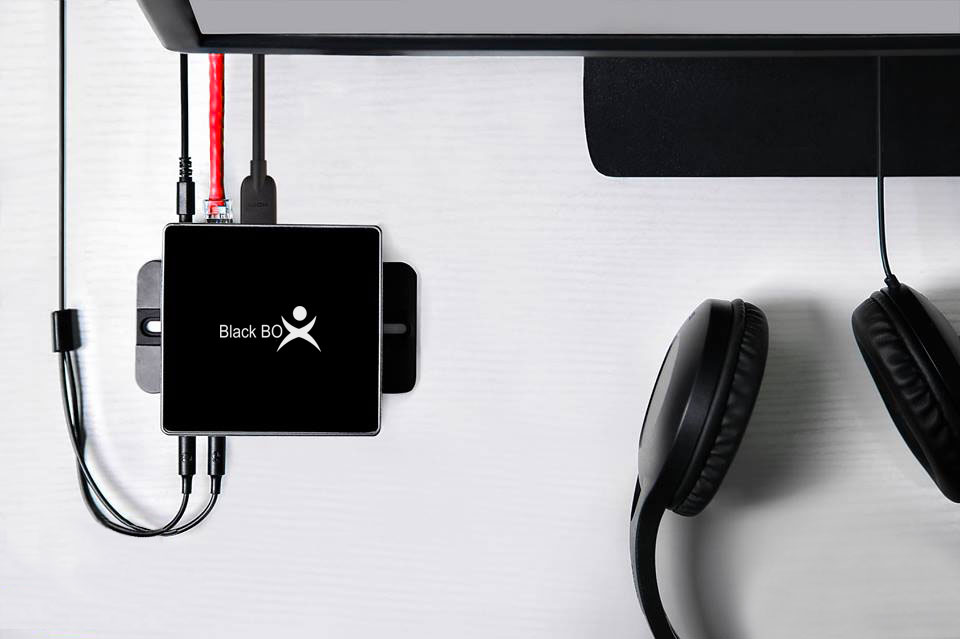

The V1 device is a compact, cell-phone size network access device that connects the end user’s display, input devices and other USB peripherals to the desktop sessions running on a shared computer and effectively allows multiple users to simultaneously share its untapped resources while still providing users with rich PC experience. The V1 device is referred to as a zero client because in contrast to thin client and PC, it contains no moving parts but only the necessary hardware & firmware to initialize a conversation with the network, begin network protocol processes, and display desktop output. It centralizes all software, processing and management to just what is running on the host, leaving little more than a keyboard, mouse and monitor at a user’s desk. As a result, it requires no endpoint management software, no local driver to install, no patch management, and no local operating system licensing fees or updates. The device consumes very little power and is tamper-resistant and completely incapable of storing any data locally, providing a more secure endpoint.
The vMatrix Server software, running on the host computer, enhances the overall functionality and usability of the sharing system by offering flexible OS support, secure desktop roaming, centralized management and broad peripheral support. IT Administrators can configure, monitor and manage the endpoint devices and users centrally and simply at the server side through the front-end console.
Model Number | V1 |
| Framework | ARM Cortex-A8 |
|---|---|
| Processor | ARM Cortex-A8 1GHz |
| RAM | 512MB DDR3 |
| Configuration Methods | Server Side & Client Side |
| Display Interface | HDMI / VGA |
| Video VGA Resolution | 640 x 480 (4:3) 800 x 600 (4:3) 1024 x 768 (4:3) 1600 x 1200 (4:3) High Defination Resolutions 1360 x 768 (16:9) 1366 x 768 (16:9) 1440 x 900 (16:10) 1600 x 900 (16:9) 1680 x 1050 (16:10) 1920 x 1080 (16:9) |
| I/O | USB: 4 x High-Speed 2.0 interface Display: 1xHDMI, 1xVGA Network: 1xRJ45 Audio: 1xMicrophone Jack, 1xSpeaker Jack Power: 1x5V DC Swith: 1xPower/Reset switch |
| Storage | 2GB NAND Flash |
| Audio | 16 bits, 44.1Khz/48Khz audio input/output via 3.5mm Stereo jacks |
| Anti-theft Gadget | Yes / Optional |
| Video | 1080P HD |
| Audio | 1 Speaker / 1 Microphone jack |
| Ethernet | 10/100/1000Mbps |
| WiFi | Optional external WiFi Antenna |
| Physical Dimensions (mm) | 93(W)x90(D)x18(H) mm |
| Weight | 150g |
| Energy consumption | 5W (without external USB devices) |
| Color | Diamond Black & Moon Silver Color |
| Working Temperature | -20 ～40℃ |
| Reliability | > 100,000 Hours |
User Number | CPU | RAM | HDD |
| Below 10 users | Intel Core Duo2.0GHZor above | 2GB-4GB | 500GB |
|---|---|---|---|
| 10-20 users | IntelCore Duo2.0GHZ above or Quad-Core | 4GB-8GB | 500GB |
| 20-30 users | Core Quad-Core 2.6GHZ above | 8GB | 1TB |
| 30-50 users | Xeon dual-core 2.3GHZ above or Quad-Core | 8GB-16GB | 1TB-2TB |
