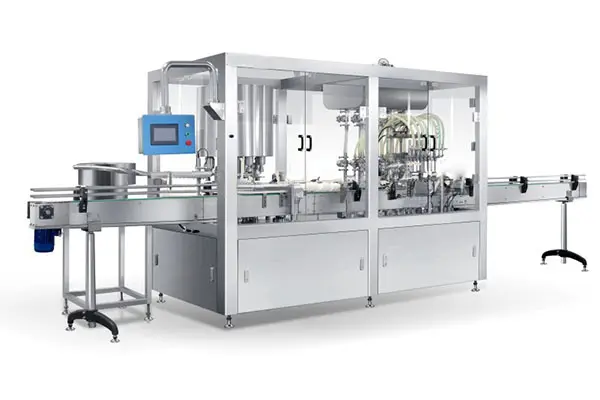

Syrup Washing Filling Capping Machine includes syrup bottle air /ultrasonic washing, dry syrup filling or liquid syrup filling and capping machine. It is integrate design, one machine can wash, fill and screw bottle in one machine, reduce investment and production cost. The whole machine is with very compact structure, small occupying area, and less operator. We can equip with bottle handing and labeling machine also for the complete line.

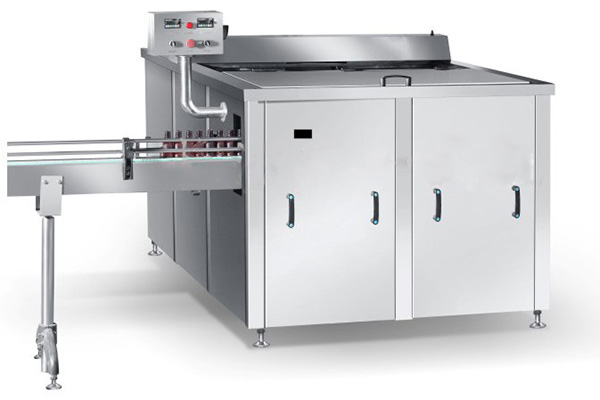

According to plastic bottle or glass bottle, we equip with Ionic air washing or Ultrasonic washing station, to make sure most suitable technology for syrup bottle washing.

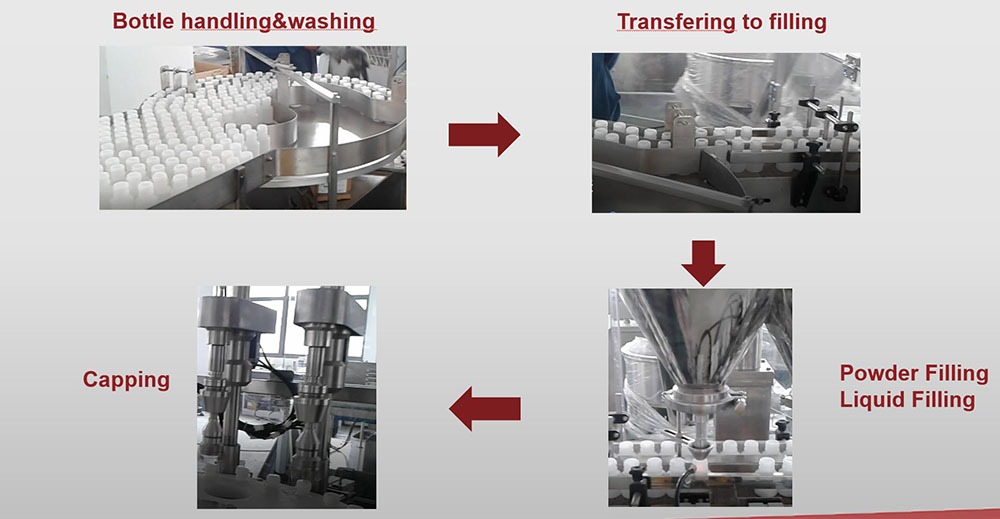

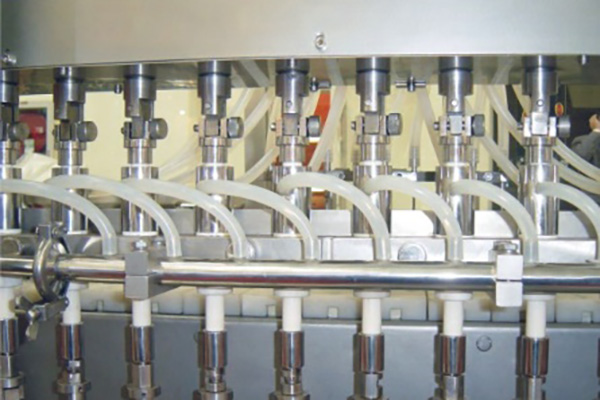

After bottle washing, bottle go to filling station. Dry powder adopt screw filling, and liquid use peristaltic pump, high filling precision, and frequency control, production speed arbitrary regulation, automatic counting. It has auto-stop function, no bottle no filling.
With cap handling
Optional drying, stoppering station
High qualified capping rate
| Applicable Specs. S | 50-500ml |
| Working Speed | 3000-12000pcs/hour |
| Filling Method and Accuracy | Dry powder: screw filling, ±2%Liquid solution: peristaltic pump filling, ±2% |
| Capping Method | Threaded Capping |
| Power | 380V/50HZ, 19KW |
| Speed controlling | Frequency control |
| Space Occupation | According to different capacity |
| *** Note: As products are constantly updated, please contact us for latest specifications. *** | |
