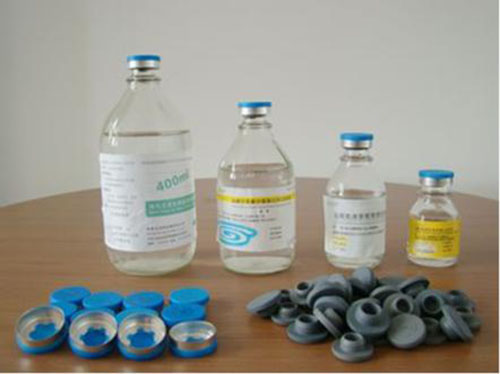

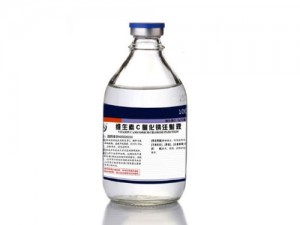

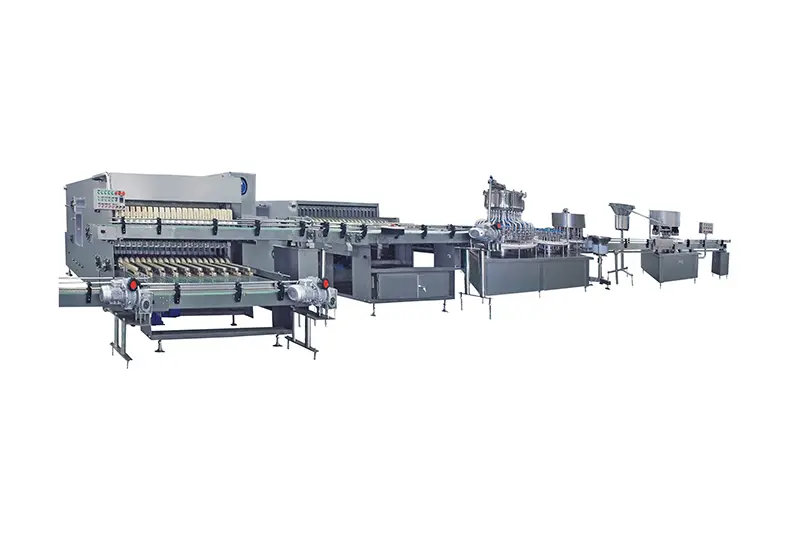

Glass bottle IV solution production line is mainly used for IV solution glass bottle of 50-500ml washing, depyrogenation, filling and stoppering, capping. It can be used for the production of glucose, antibiotic, amino acid, fat emulsion, nutrient solution and biological agents and other liquid etc.

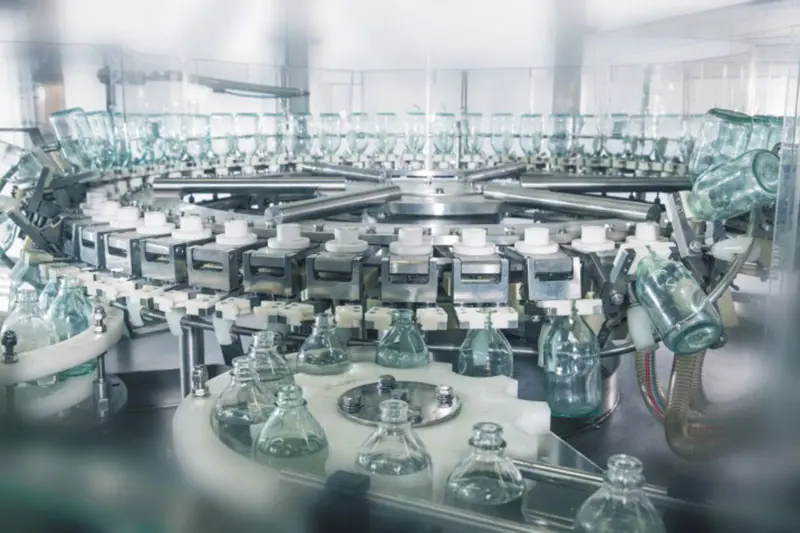

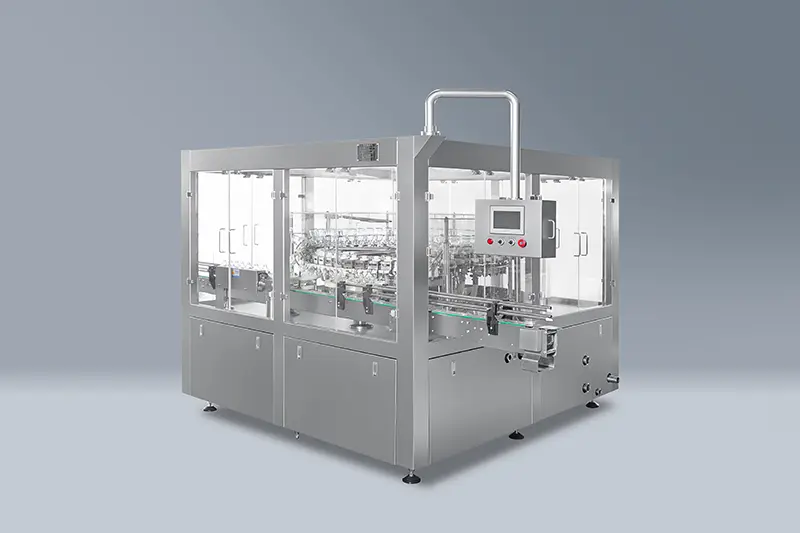

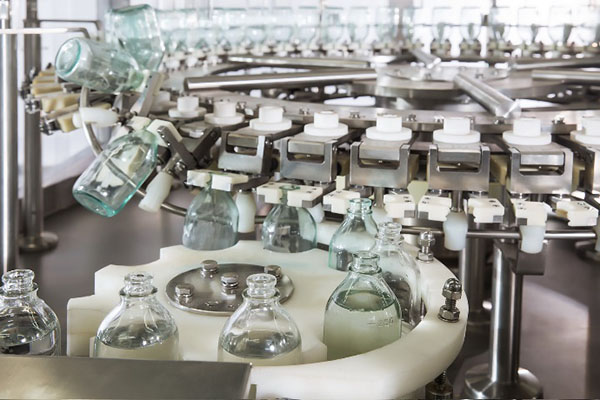

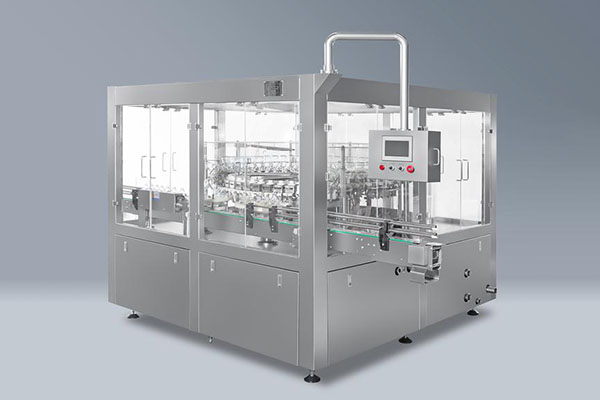

This machine is used for the fine washing for infusion glass bottle, take turns to use the normal water, purified water, injection water, clean compressed air, fresh injection water and clean compressed air to washing the bottle in turns.
Laminar flow sterilization tunnel used for washed vial’s dry sterilization and remove heat, It can reach the highest temperature 300～350℃, efficient sterilization time for 5-10 minutes.
It has three working area (Preheat area, heating area, cooling area).

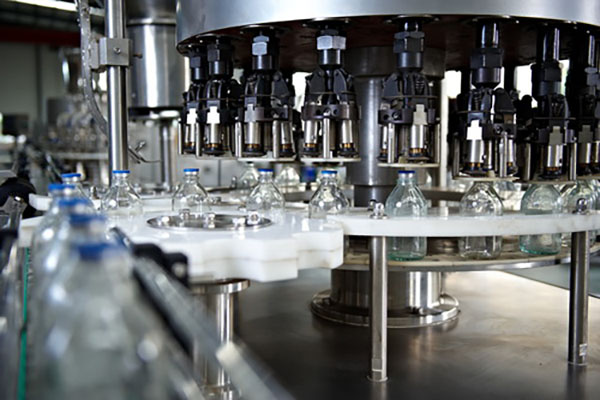

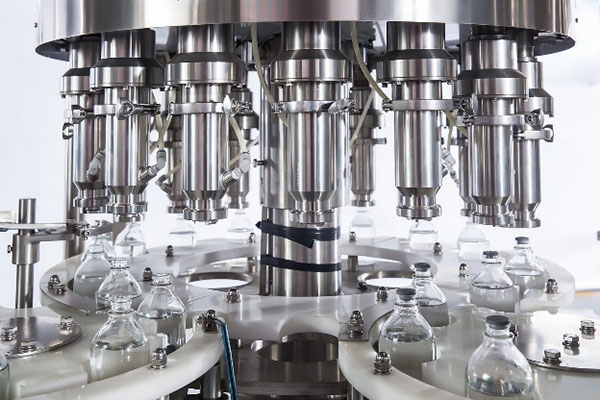

Filling part adopts Germany GEMU valve filling, high precision.
Nitrogen charging immediately after filling, also nitrogen protection between the nitrogen charging and stoppering.
No bottles no filling, no bottles no vacuuming, no bottle no nitrogen charging, ensure the vacuum level in the air tank during vacuuming, meanwhile, make sure the oxygen residual after stoppering (control within 1.0%)。

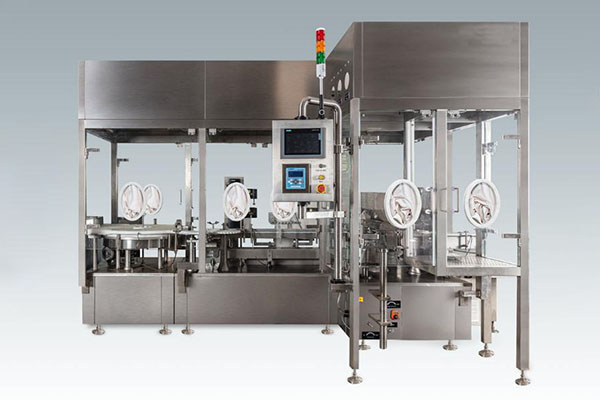

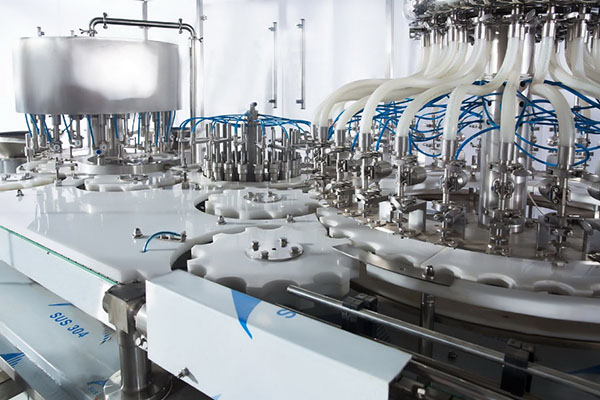

Aseptic liquid filling machine is very accurate and stable operation. The filling volume can be directly adjusted through HMI, here we have ORABS equipped with stainless steel laminar air flow hood.

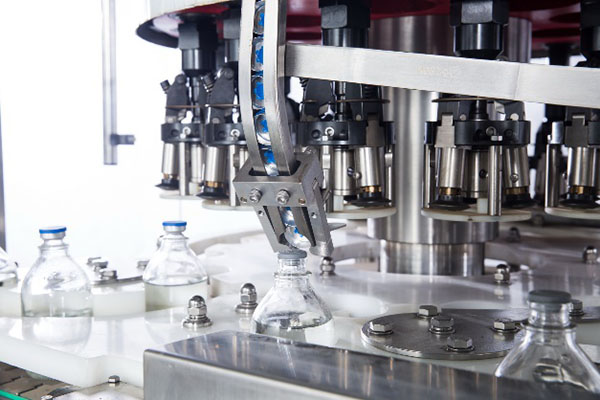

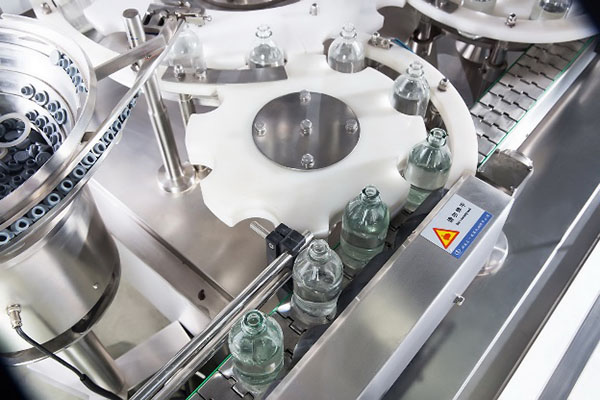

It is mainly used for glass bottles capping. Continuous operation. Picking up and crimping, at the same time rolling the cap. After the completion, the cap have the same size and edge smooth, good appearance. High-speed, low damaged.
Item | Machine model | ||||
CNGFS16/10 | CNGFS24/10 | CNGFS36/20 | CNGFS48/20 | ||
| Production capacity | 60-100BPM | 100-150BPM | 150-300BPM | 300-400BPM | |

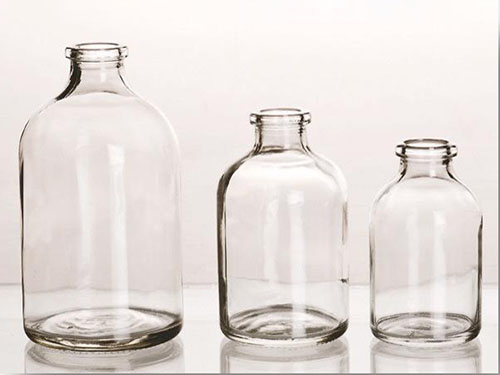

| Applied bottle size | 50ml, 100ml, 250ml, 500ml | ||||
| Filling accuracy | ±1.5% | ||||
| Compressed air (m³/h) | 0.6Mpa | 1.5 | 3 | 4 | 4.5 |
| Power supply | KW | 4 | 4 | 6 | 6 |
| Weight | T | 7.5 | 11 | 13.5 | 14 |
| Machine size | (L×W×H)(MM) | 2500*1250*2350 | 2500*1520*2350 | 3150*1900*2350 | 3500*2350*2350 |
