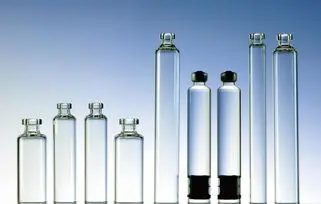

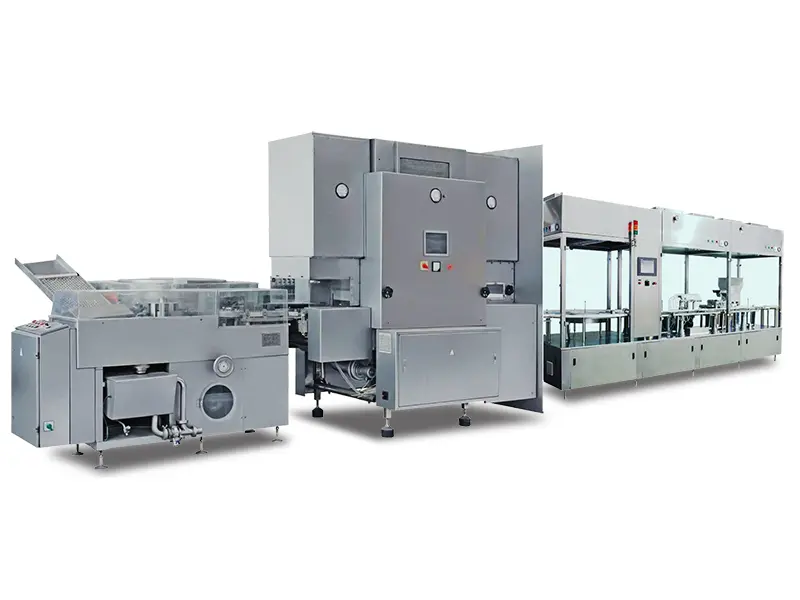

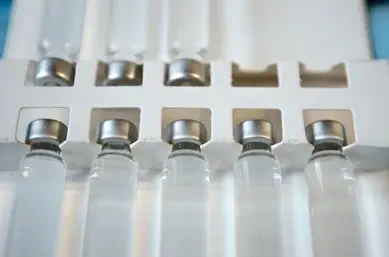

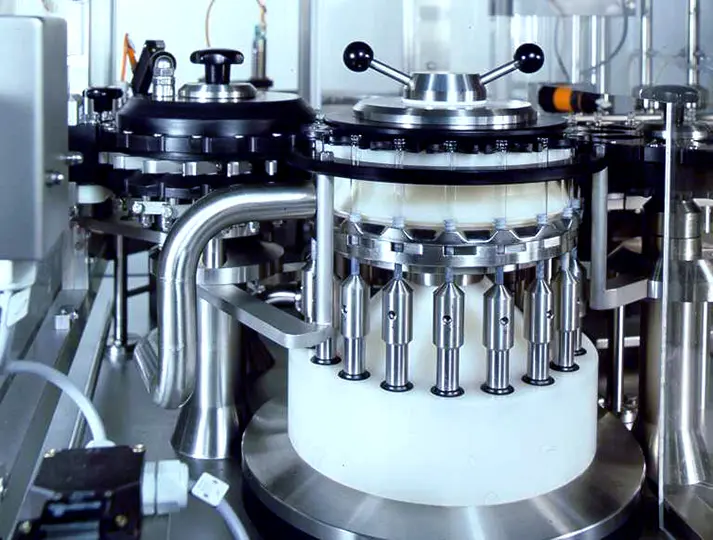

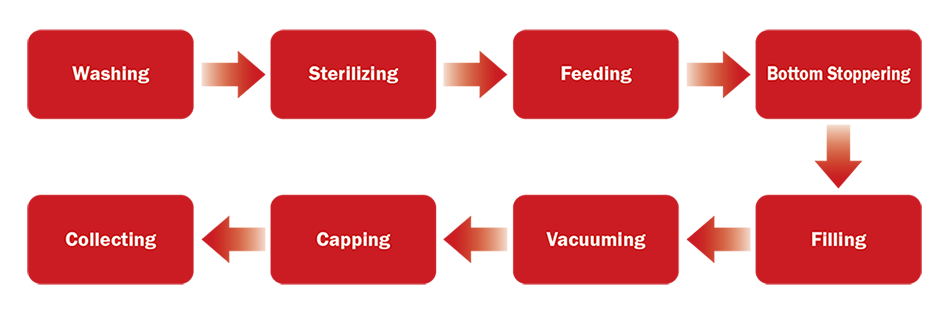

Our cartridge filling production line (carpule filling production line) welcomed a lot for our customers to produce cartridges/carpules with bottom stoppering, filling, liquid vacuuming (surplus liquid), cap adding, capping after drying and sterilizing. Full safety detection and intelligent control to guarantee stable production, like no cartridge/carpule, no stoppering, no filling, auto material feeding when it is running out.
No | Item | Description |
1. | Applicable range | 1-3 ml cartridge |
2. | Production capacity | 80-100 cartridges/min |
3. | Filling heads | 4 |
4. | Vacuum consumption | 15m³/h, 0.25Mpa |
5. | Stoppering heads | 4 |
6. | Capping heads | 4 |
7. | Power | 4.4kw 380V 50Hz/60Hz |
8. | Filling accuracy | ≤ ± 1% |
9. | Dimension( L*W*H) | 3430×1320×1700mm |
