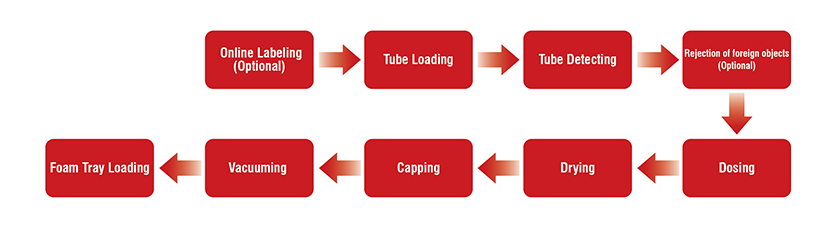

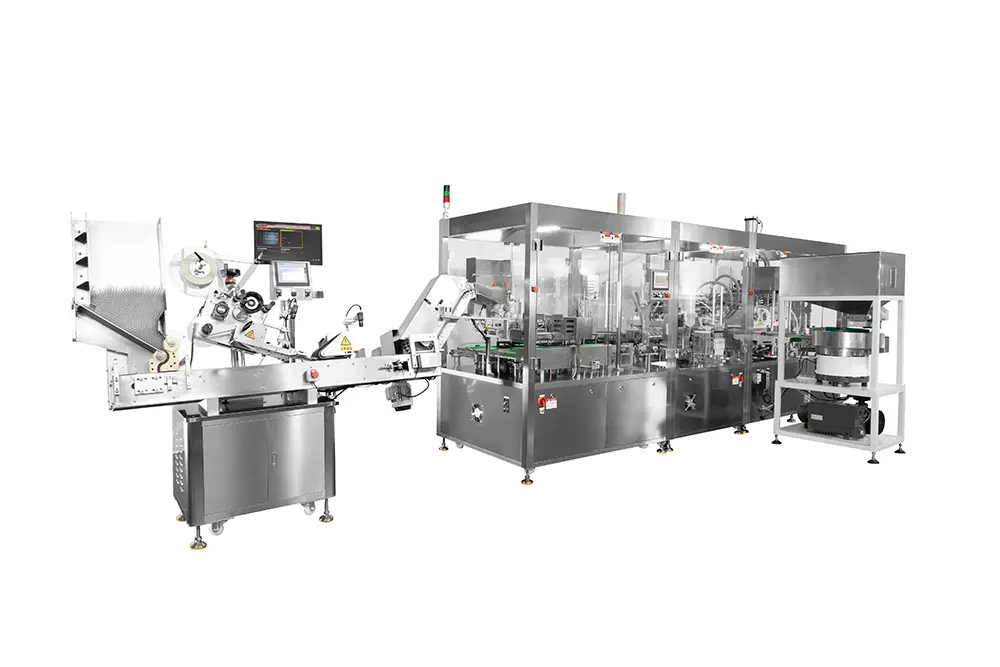

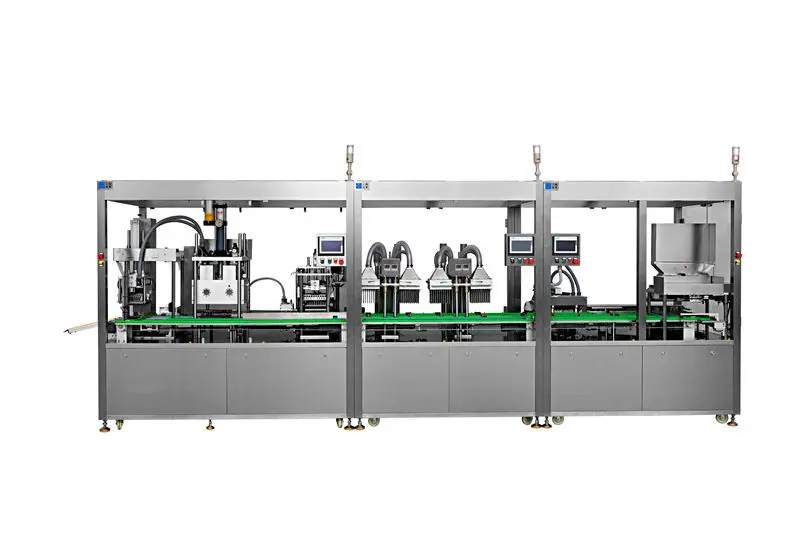

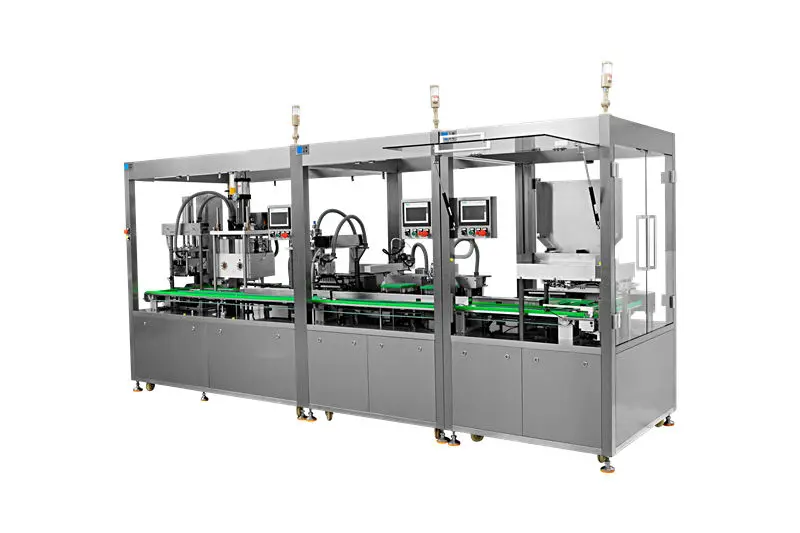

The blood collection tube production line includes tube loading, Chemical dosing, drying, stoppering & capping, vacuuming, tray loading, etc.
Easy & safe operation with individual PLC &HMI control, only need 2-3 workers can run the whole line well. Compared with other manufacturers, our equipment has unique features, including overall dimension smaller, higher automation & stability, lower fault rate and maintenance cost, and etc.

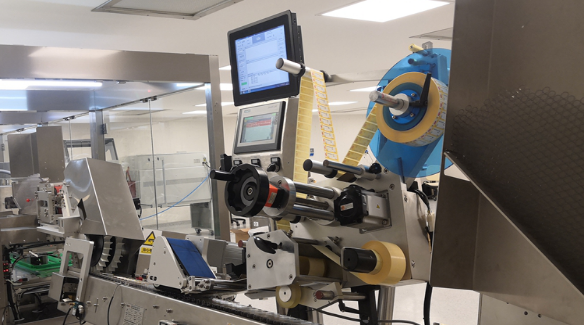

Adopt German Leuze GS photoelectric sensor, United States AB servo motor for controlling label sending, JSCC motor and the corresponding speed drive for main driving and label pressing.
It can be with online printing system for batch code and date printing.
One machine can be for 8mm/13mm/16m.
Online connection with production line.
Automatic tube loading technology, loading the tube into clamps automatically with detector for no tube or inverse direction tube. The machine apply for any kind of label tubes and solve the defect of the avo label broken of traditional tube loading machine
from other manufacturers.
Equip with 3 dosing system, according to customer blood collection tube production demand.
USA FMI pump, spray dosing
Syringe pump lifting dosing
Syringe pump filling dosing

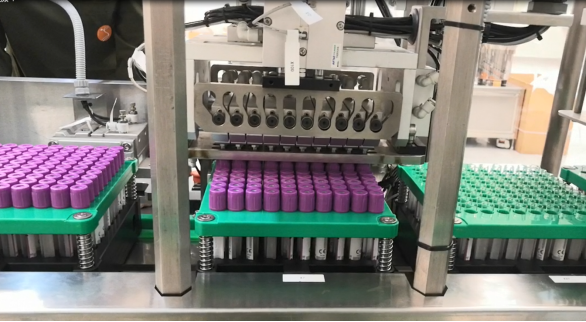

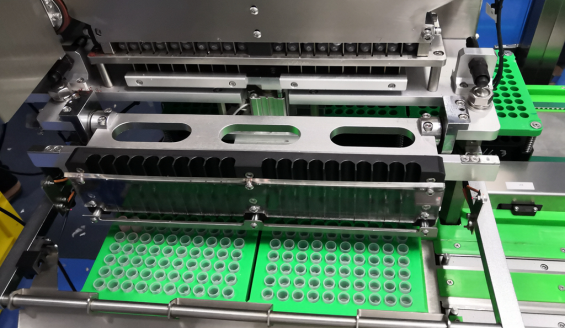

The machine has function of automatic cap arranging, cap feeding, cap in place detection, capping detection. Inside of the tube will automatically produce a certain negative pressure, then automatically load tube into the tray.

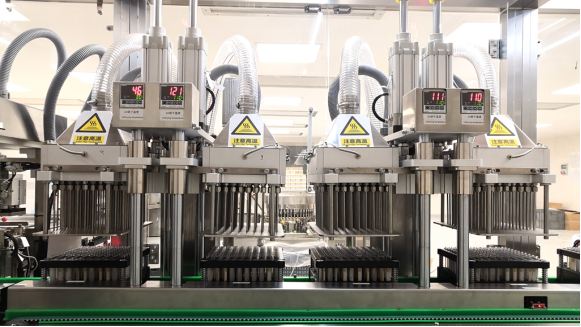

There are 4 sets drying system, adopt PTC heating, no pollution to the inside of tubes, and achineve high efficiency of drying. It has correct positioning device for the hot rods and tubes.
