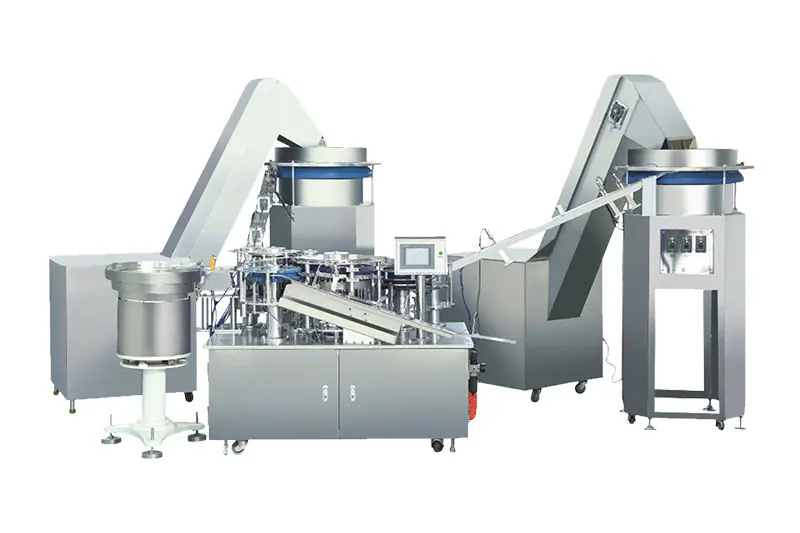

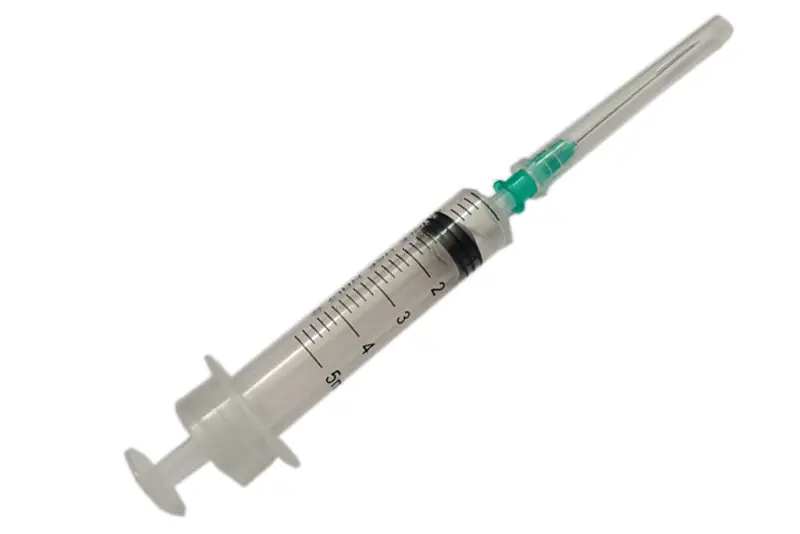

Our Syringe Assembling Machine is used for assembling syringe automatically. It can produce all kinds of syringes, including luer slip type, luer lock type, etc.
Our Syringe Assembling Machine adopts LCD display to display the feeding speed, and can adjust the assembly speed separately, with electronic counting. High efficiency, low power consumption, easy maintenance, stable operation, low noise, suitable for the GMP workshop.

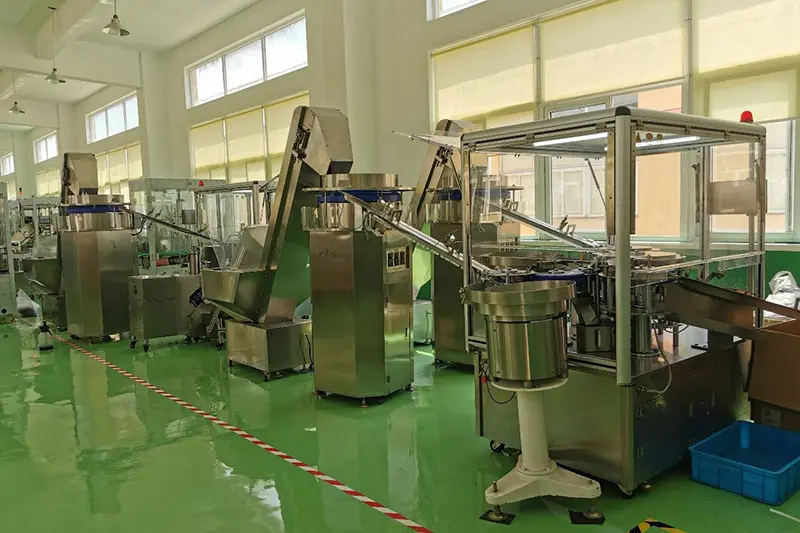

Our syringe assembling machine consists of feeding system and assembly mechanism.
Feeding system: feed 4 components of syringe (plunger/stopper/needle/barrel) to the assembly mechanism.

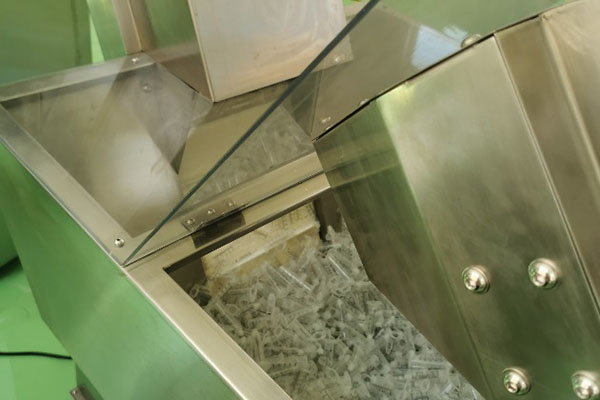

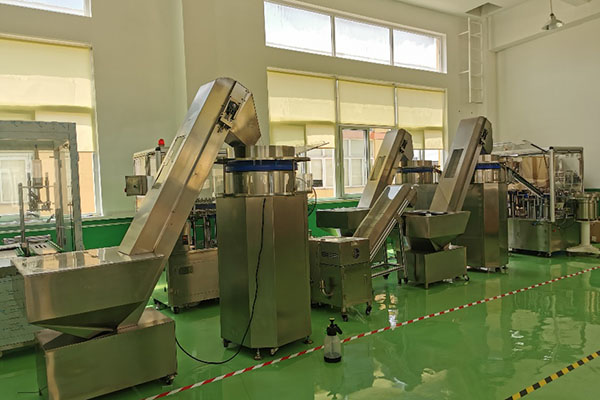

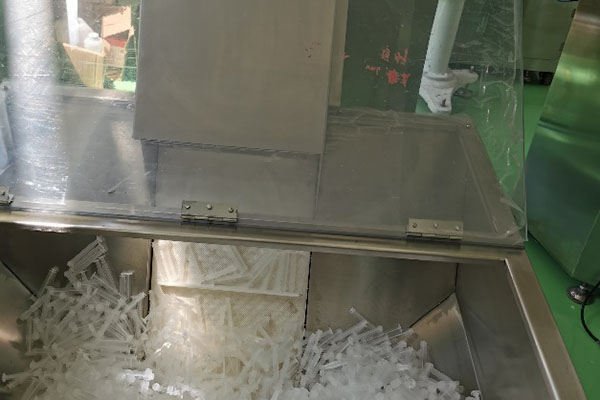

Feeding system are composed of feed bin and centrifugal feeder for barrel/plunger, hopper and feeder for needle/stopper.

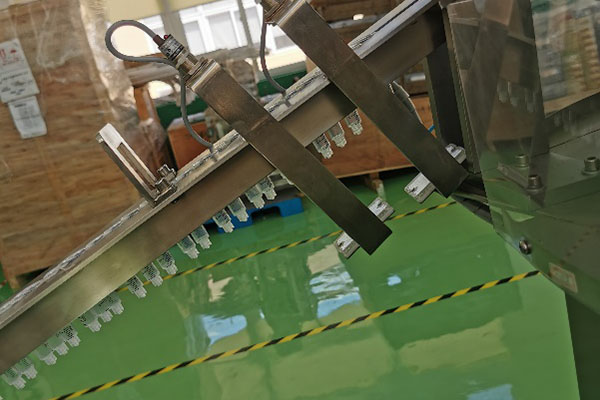

Feeding system with photoelectric sensors, when assembling mechanism is full of products it will stop feeding, and when there is lack of products it will start working automatically.

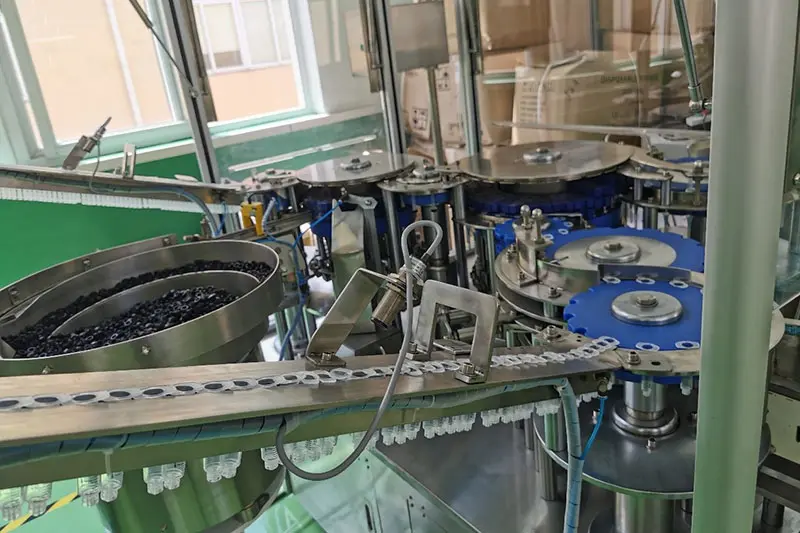

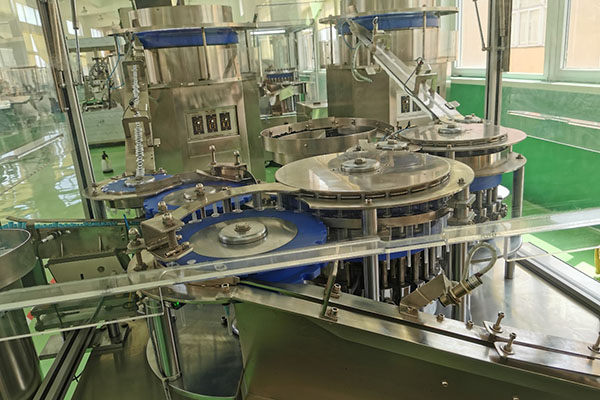

assemble all parts of components together as a finished product. Usually, It completes 3 actions: action 1 – assemble plunger with rubber stopper; action 2 – assemble barrel with needle; action 3 – assemble plunger with stopper and barrel with needle.
Model | ZZ-001IV |
| Applicable Specification | 2ml~50ml |
| Production Capacity | 150-250pcs/min |
| Overall Dimension | 4200*3000*2100mm |
| Weight | 1500kgs |
| Power Supply | AC220V/3KW |
| Compressed Air Flow | 0.3m³/min |
No. | Name | Brand | Remark |
1 | Frequency converter | Mitsubishi (Japan) | |
2 | Motor | Taizhou, China | |
3 | Reducer | Hangzhou, China | |
4 | Adjustable-speed motor | Mitsubishi (Japan) | |
5 | Control system | Single chip microcomputer | |
6 | Touch Screen | China | |
7 | CCD vision sensor system | KEYENCE (Japan) | |
8 | The housing material | SS 304, Plated metal | |
9 | Dust cover | Aluminum profile |
