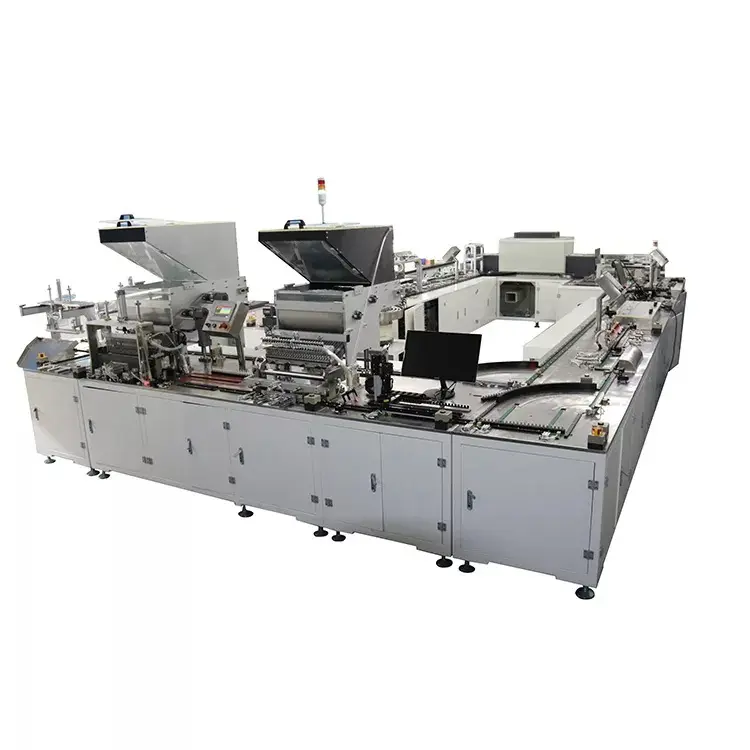

Fully Automatic Production Line for Insulin Pen Needle

Our Syringe Assembling Machine is used for assembling syringe automatically. It can produce all kinds of syringes, including luer slip type, luer lock type, etc. Our Syringe Assembling Machine adopts LCD display to display the feeding speed, and can adjust the assembly speed separately, with electronic counting. High efficiency, low power consumption, easy maintenance, stable operation, low noise, suitable for the GMP workshop.

Explore our extensive selection of

Fully Automatic Production Line for Insulin Pen Needle

Our Syringe Assembling Machine is used for assembling syringe automatically. It can produce all kinds of syringes, including luer slip type, luer lock type, etc. Our Syringe Assembling Machine adopts LCD display to display the feeding speed, and can adjust the assembly speed separately, with electronic counting. High efficiency, low power consumption, easy maintenance, stable operation, low noise, suitable for the GMP workshop.

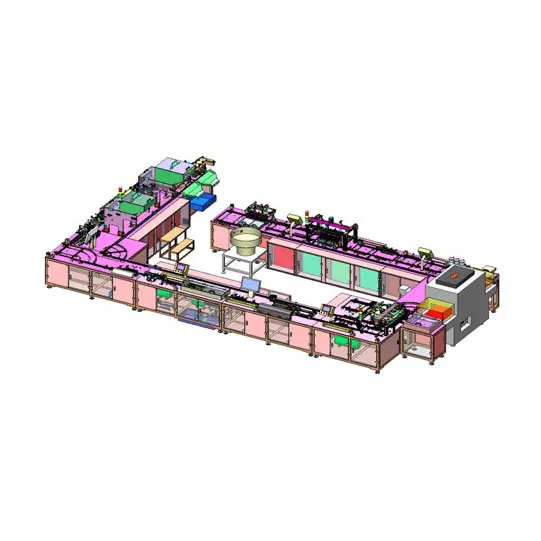

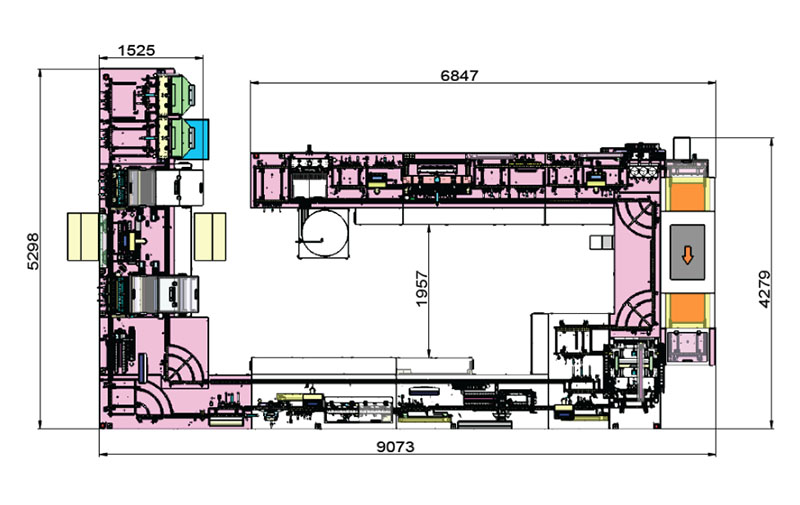

Machine Layout

Medical Equipment

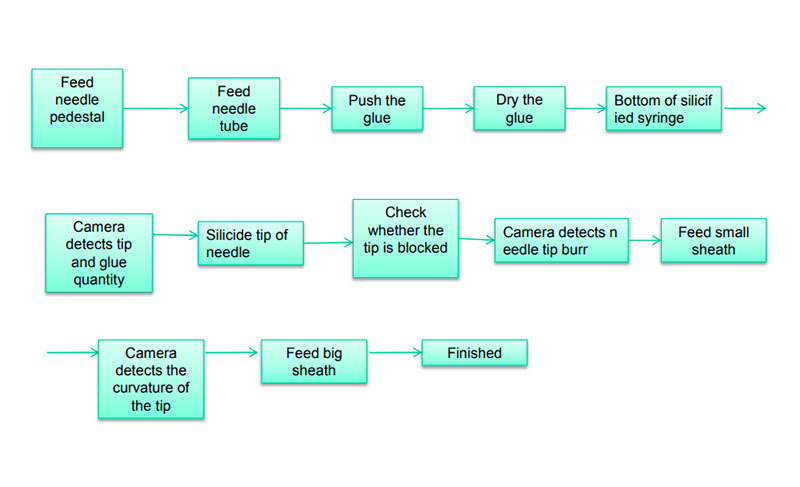

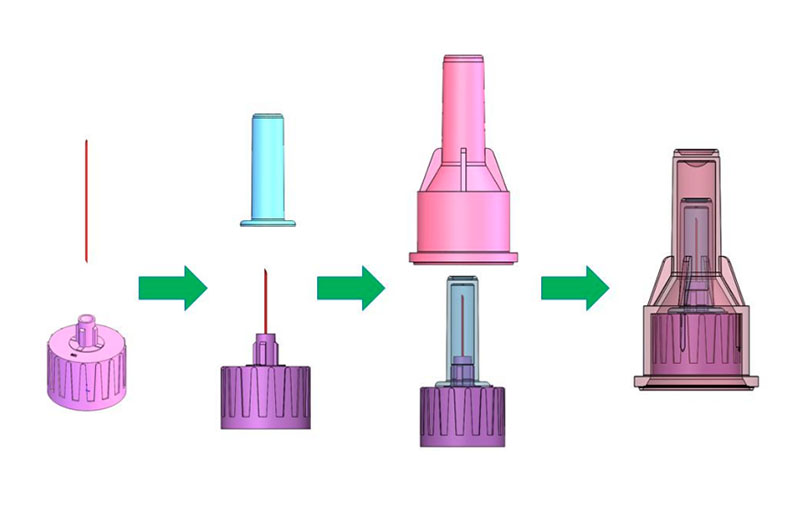

Technological Process

Main Technical Parameters:

Machine function

Specifications

Utilization rate: ≥ 95%; Pass rate: ≥ 98%
Capacity = 24000 pcs/H
Specifications for: 29G 30G 31G 32G 33G 34G
Power: 30 kW
Air pressure: 0.6~0.8 Mpa, 1.5m³/Min
Size: L×W×H=9500×5500×2000 mm
